Cantilever entangle Around machine

Contact me:

Product introduction
Online consultation

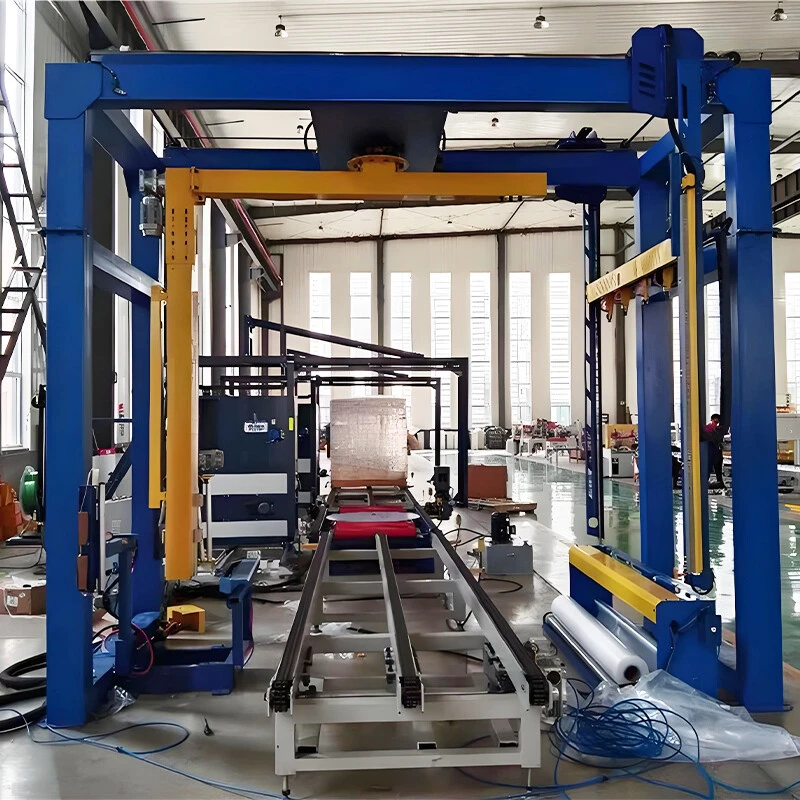

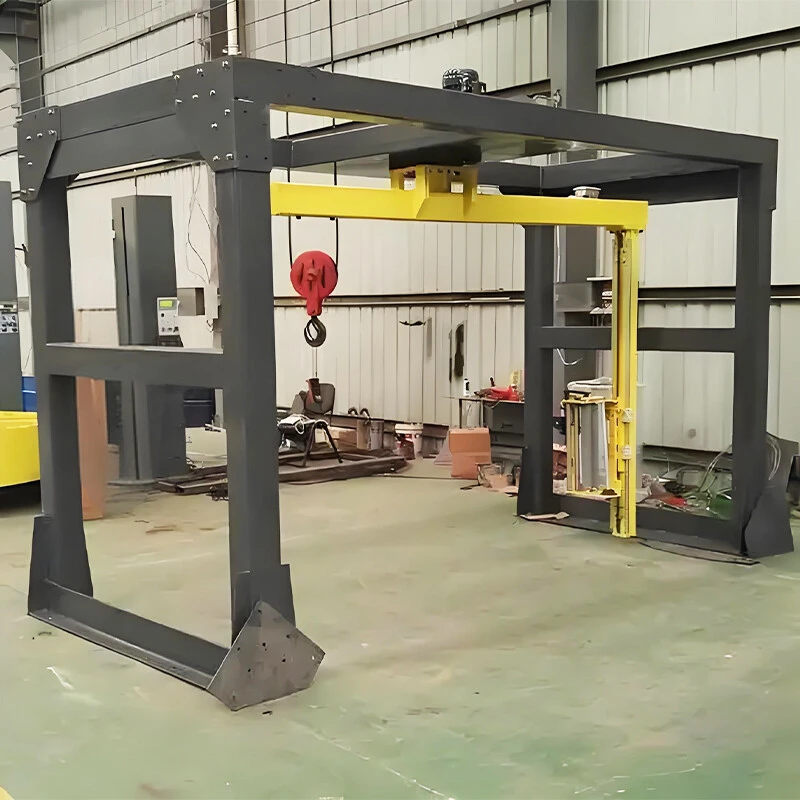

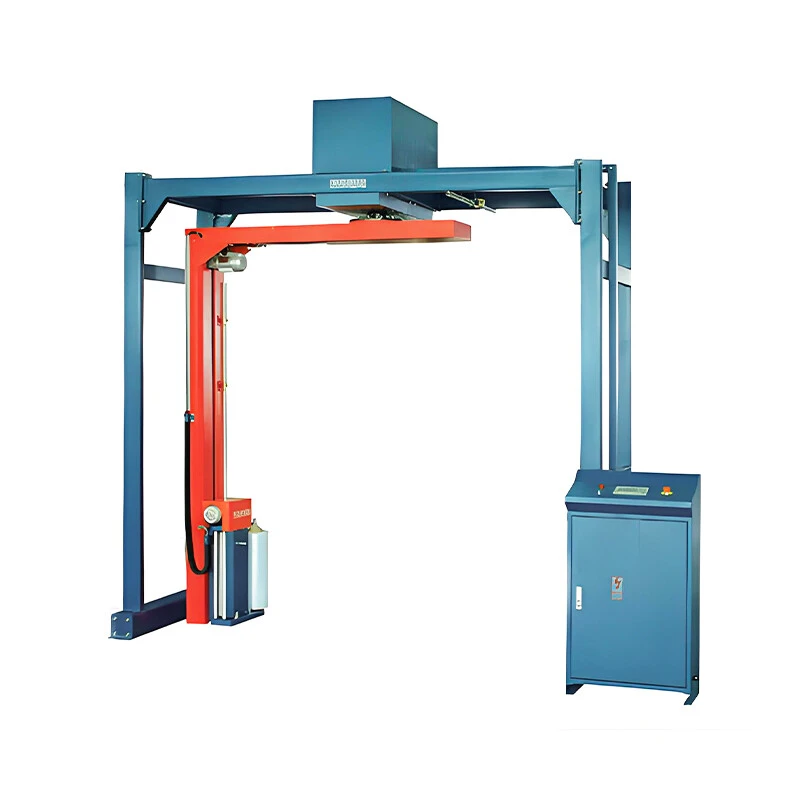

Cantilever wrapping machine is mainly suitable for modern operations with large production volume and high logistics efficiency, and is an equipment that meets the packaging requirements of lighter or heavier goods.

Different packaging systems can be customized according to different products and actual needs of the site to automatically complete the entire process of sensing, packaging, centering, and conveying of goods. The conveying mechanism can adopt different forms such as rollers, belts, and chain plates, and the automatic film-breaking mechanism can realize unmanned operation. It is widely used in food, beverage, chemical, papermaking, building materials and other industries.


PRODUCT FEATURES

The conveyor line can be adjusted and designed according to needs: roller, belt or chain conveyor lines can be configured. Cargo (pallet) lifting device. Film automatic cutting device, wrapping film break warning device. The winding height can be increased, and the winding size can be increased. Top covering film system, top pressure device.


Chinese nameCantilever winding machine
Packaging efficiency60-70 trays/hour
Cantilever speed0-25rpm speed variable frequency speed regulation
Electric system voltage220v, 50hz (optional pneumatic system)
Wrapping specificationsL: 500-1300mm W: 500-1200mm H: 500-2000mm
Dimensions3440mm×1800mm×3220mm  (excluding conveyor line)
Power/voltageCantilever 1.1kw, film frame 0.4kw, column 0.37kw, conveyor 0.75kw/AC220V
