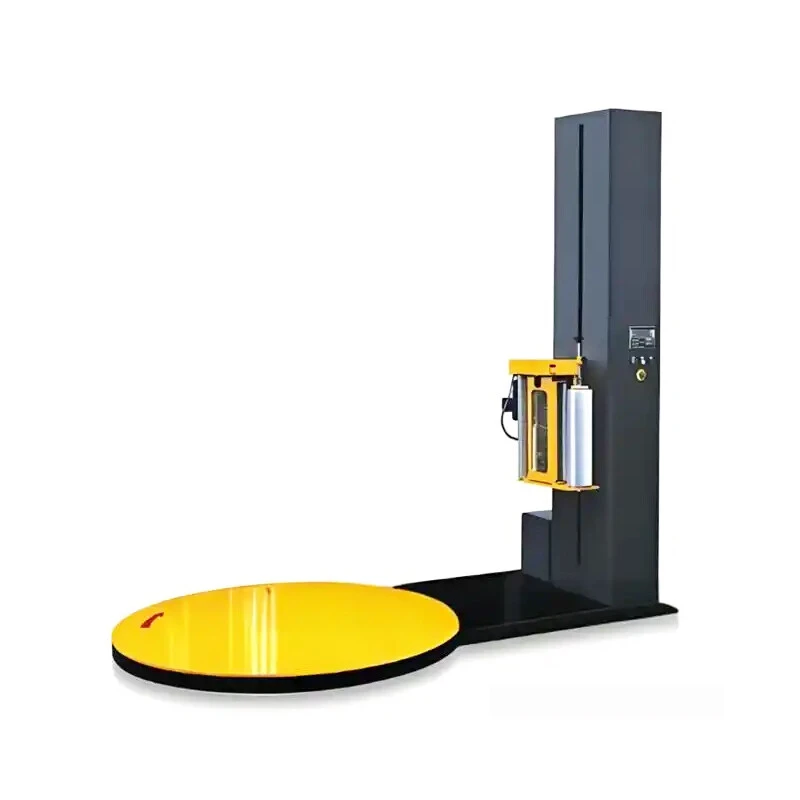

The pallet wrapping machine is a machine used to package goods shipped on pallets. The shrinkage and self-adhesiveness of the wrapping film bind the goods and pallets into a whole and play a fixing role.


PRODUCT APPLICATION

1 Applicable to the wrapping packaging of single goods or multiple small goods.

The top pressure device ensures that the goods are stable during the packaging process, and the packaging height can be customized according to customer requirements! At the same time, according to the actual needs of packaging, two types of equipment can be selected: film frame fixed and film frame moving up and down. Widely used in glass products, hardware tools, electronic appliances, papermaking, ceramics, chemicals, food, beverages, building materials and other industries. It can improve packaging efficiency, reduce losses during transportation, and has the advantages of dustproof, moisture-proof, and reducing packaging costs. It is an ideal choice for intensive packaging. Basic features: double-ring transmission, reciprocating work. Safe and convenient. Frequency conversion control, the overlap of the packaging belt can be adjusted as needed. The slip ring can move up and down to adapt to steel wires with different inner and outer diameters. The tightness of the packaging belt is adjustable. The rollers and guard rollers are both coated with polyurethane. Equipped with end tape fixing device. Wrapping packaging machine is mainly used in chemical, electronic, refractory, glass products, papermaking, hardware, food and beverage industries,

2 Suitable for container transportation of bulk goods and pallet packaging of loose parts.

The turntable starts and stops slowly to prevent the goods from falling instantly. The rotating film rack makes the packaging more tightly fitted. Local reinforcement at the required parts makes the packaging more perfect. The interval of the film is adjustable, and the packaging material is more economical. The turntable resets to ensure accurate positioning during transportation. Photoelectric height measurement can automatically sense the height of the package, and the number of wrapping layers and packaging times at the bottom and top are easy to adjust. Overload protection is safe and reliable, simple maintenance and easy to operate. Manual and electric transport vehicles are the first choice.


WRAPPING METHOD

Usually, there are two ways of wrapping machines: manual and automatic.

Manual winding method

Lower the film frame to the bottom, place the goods on the chassis, place the film roll on the roll seat, thread the film according to the film threading method, and then start the turntable motor to rotate the turntable. At this time, the film will be wound at the bottom of the goods. When the number of winding turns reaches the degree you need, press the film frame rise button to raise the film frame to the required position (photoelectric height measurement is effective); press the film frame down button to lower the film frame to the bottom. Repeat the above process to complete the packaging, and press stop to end.

Automatic winding method

Make the stretch film in the initial state, put the goods on, thread the film, select the number of up and down turns, the number of up and down times, and the time of crossing the top. After pressing the automatic start button, the whole process is automatically completed.


Power/voltage1P、AC220V/3P、380V、50Hz、1.25KW
Arm speed0~14r/min (adjustable)
Station column height2000mm
Pallet sizeMaximum 2000mm
Packaging diagonalMaximum 2000mm
Height2000mm (customizable)
Packaging material specificationsWidth ≤500mm Outer diameter ≤280mm
Stretch film machine dimensionsL (4000) x W (2000) x  H (3120) mm
