Level entangle Around machine

Contact me:

Product introduction
Online consultation

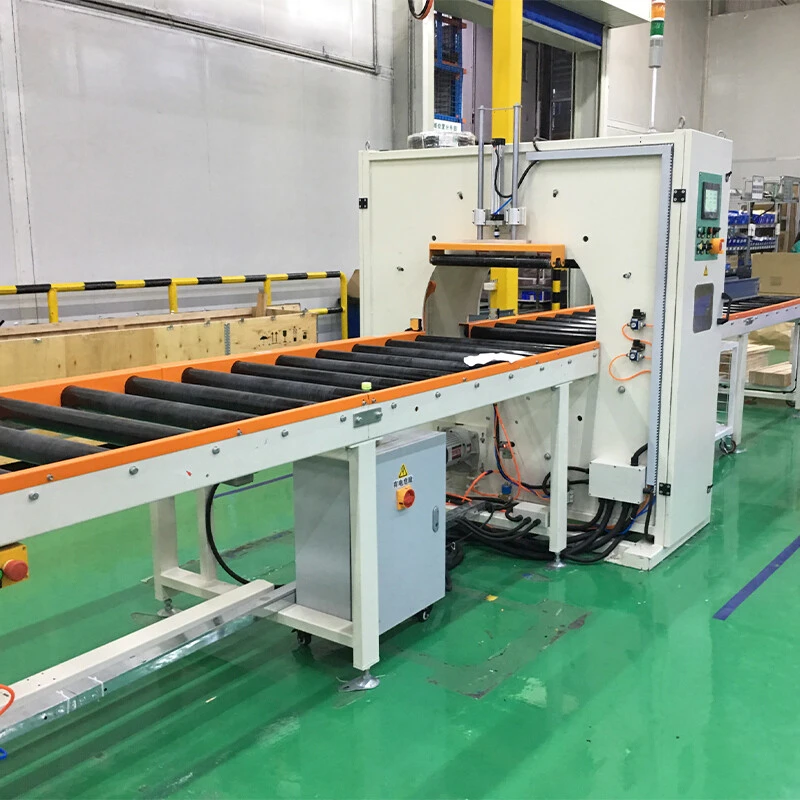

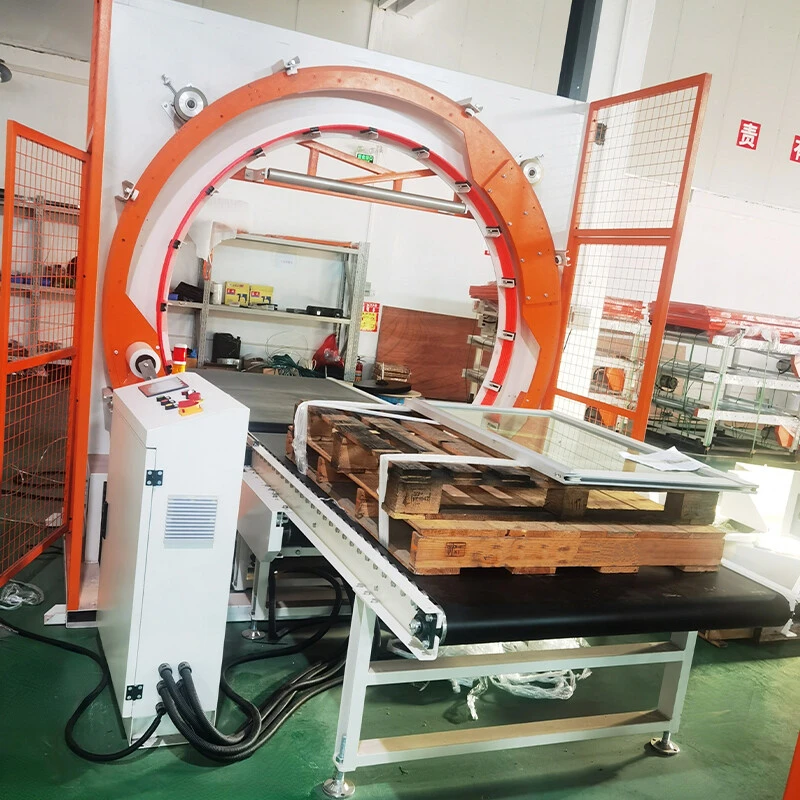

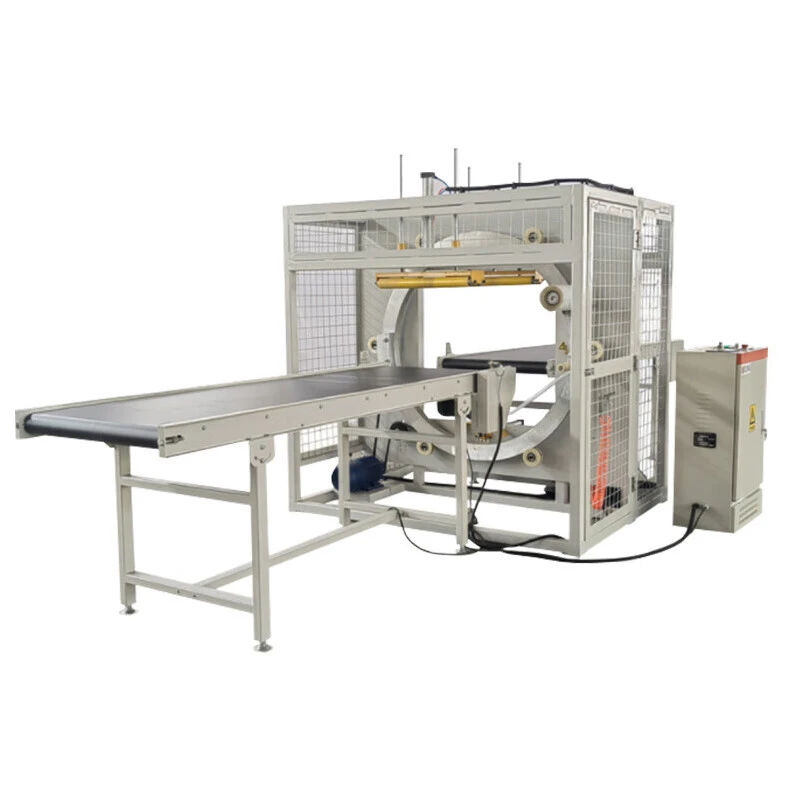

The horizontal wrapping machine is suitable for building materials, profiles, pipes and other industries. With the automatic conveying equipment, it can realize the high-speed, fully automatic and unmanned film wrapping packaging of products, which can effectively keep the goods stable, facilitate transportation and storage, reduce the damage of goods caused by factors such as breakage, pollution, rain during transportation, save packaging time and reduce packaging costs.


PRODUCT FEATURES

With wrapping film, non-woven fabrics, composite paper and other packaging materials as the main packaging materials, it wraps and packages long bars, pipes, plates, wires, etc. It is controlled by PLC programmable controller. It adopts human-machine dialogue touch screen. The wrapping overlap can be adjusted according to packaging requirements. Photoelectric sensing, automatic and continuous work. The film frame automatically resets. Safe, stable, efficient and convenient.


WORKING PRINCIPLE

The packaging material rotates around the goods moving at a uniform speed through the rotating arm system, and at the same time adjusts the expansion force of the packaging material through the stretching mechanism, so that the object is packaged into a tight whole, and a spiral regular packaging is formed on the surface of the object, which is beautiful, dustproof and moisture-proof.


Supports customized processingYes
Are there any stocks in stockYes
Control modeAutomatic
Control systemCNC
Dimensions1800*800mm
Weight3800kg
Turret load10tkg
Turret speed60(r/m)RPM
Minimum packaging30MM
