Steel belt entangle Around machine

Contact me:

Product introduction
Online consultation

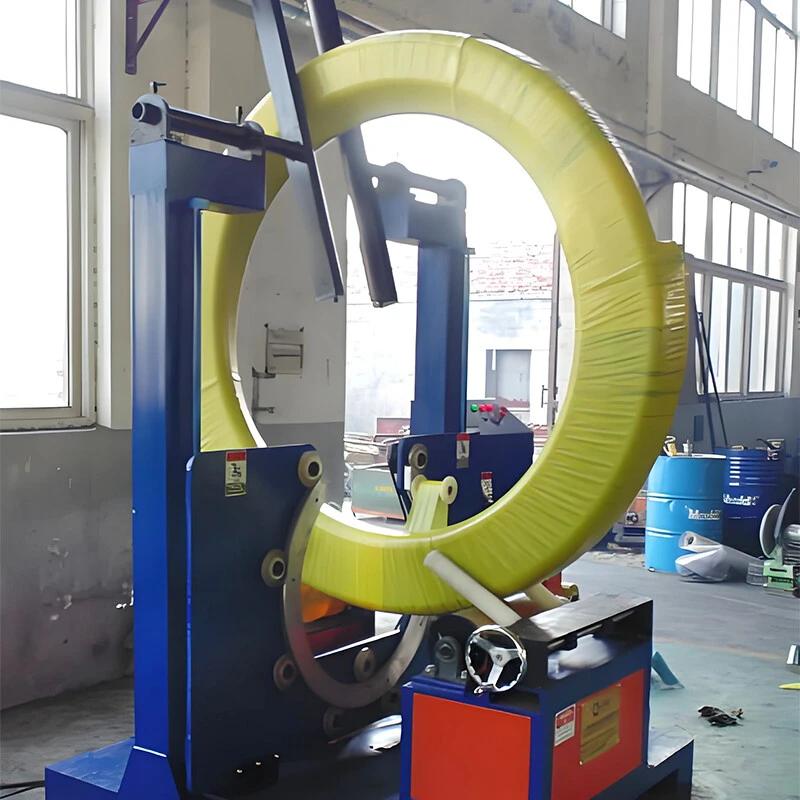

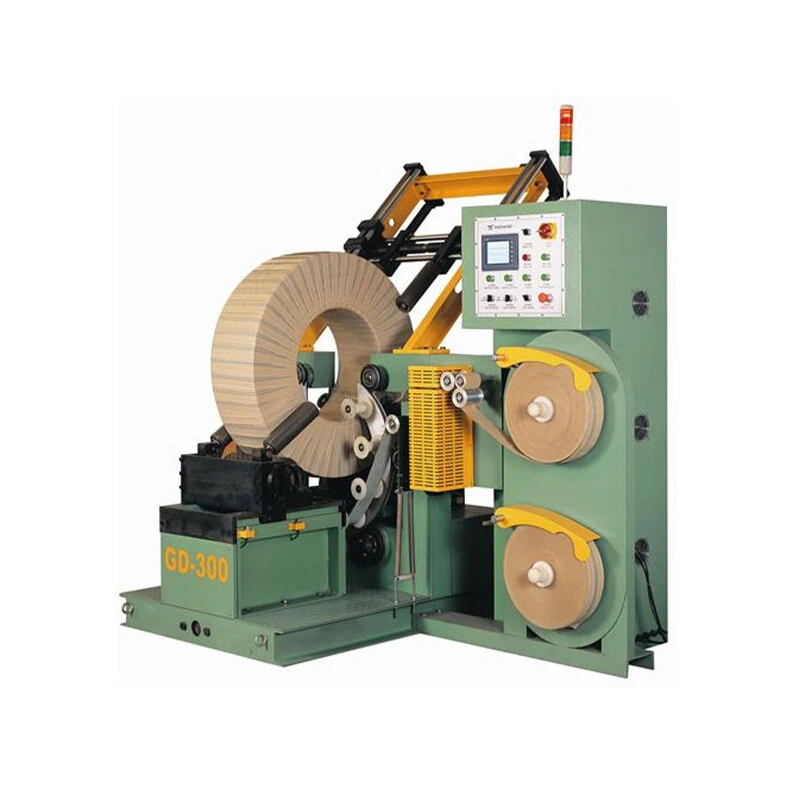

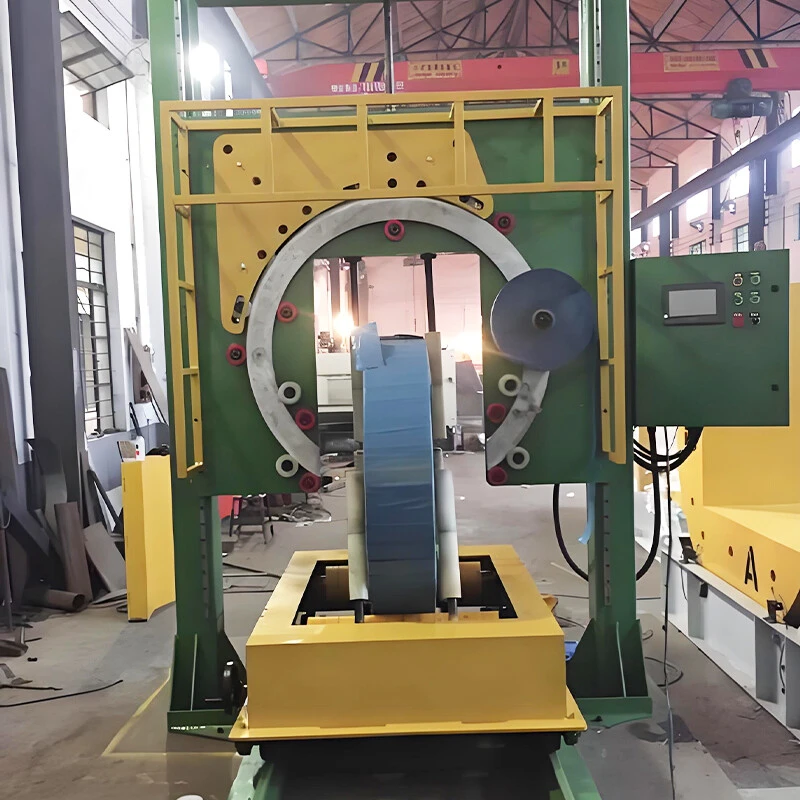

The steel strip wrapping machine is a novel wrapping packaging machine researched, designed and manufactured for the metallurgical industry. It has a good protective effect on the steel strip against rust, corrosion and dust. It can be widely used for the outer packaging of annular objects such as copper strips, aluminum strips, bearings, steel wires, cables, hoses, etc.


PRODUCT FEATURES

Adopt PLC microcomputer control.

Adopt HMI touch screen operation.

Manual/automatic working mode selection.

Frequency conversion speed regulation, the overlap of the packaging belt can be adjusted as needed.

Easy to operate, touch input of the outer diameter, inner diameter and width of the product, the system will automatically adjust the corresponding packaging parameters.


Chinese nameSteel belt entangle Around machine
Total powerAbout 10kw
Voltage/frequency3¢380V/50Hz
Weight approx.About 6000kg
Steel belt widthW≤600mm
Steel belt outer diameter800mm≤OD≤1800mm
Steel belt inner diameterID≤500mm
Packaging material

Roll-shaped composite  paper belt W=90mm (or other winding materials)

Ring body speedv≤40r/min (frequency conversion adjustment)
Roller load6000kg (can be increased)
Overlap rangeAny overlap (adjustable)
