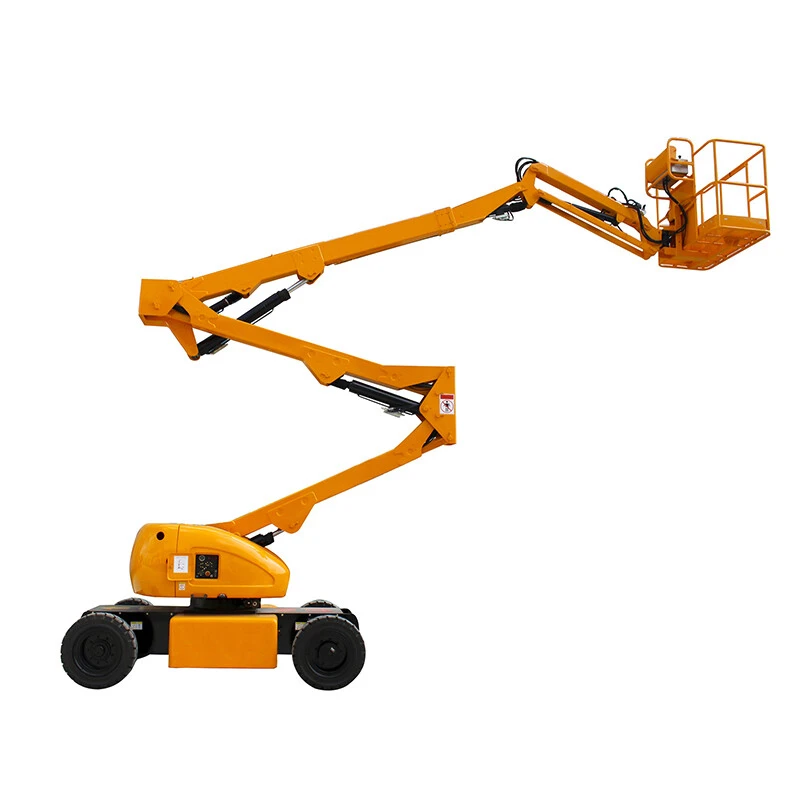

Electric articulated boom lift

Contact me:

Product introduction
Online consultation
It can be operated easily in a small space, with a solid structure, safe and reliable, and easy to maintain.

1. Compact structure, width 1.5m

2. Height can pass through standard doorways

3. Optional platform rotation range 140° (+70°/-70°)

4. Small turning radius (2.95m)

5. Horizontal extension distance 6.4m

6. Long working cycle

7. Full proportional control



STANDARD EQUIPMENT

Semi-traction battery - Charging indicator - 48V-45A battery charger - Battery power failure protection - Overweight protection device - Proportional control - Tilt alarm device - Full height drive - Super elastic black tires - Two-wheel drive and two-wheel steering - Horn - Electro-hydraulic transmission - 230V cable pre-installed



OPTIONS AND ACCESSORIES

Strobe light - Travel alarm - Working bucket air pipe - Biodegradable oil - High temperature kit - Low temperature kit

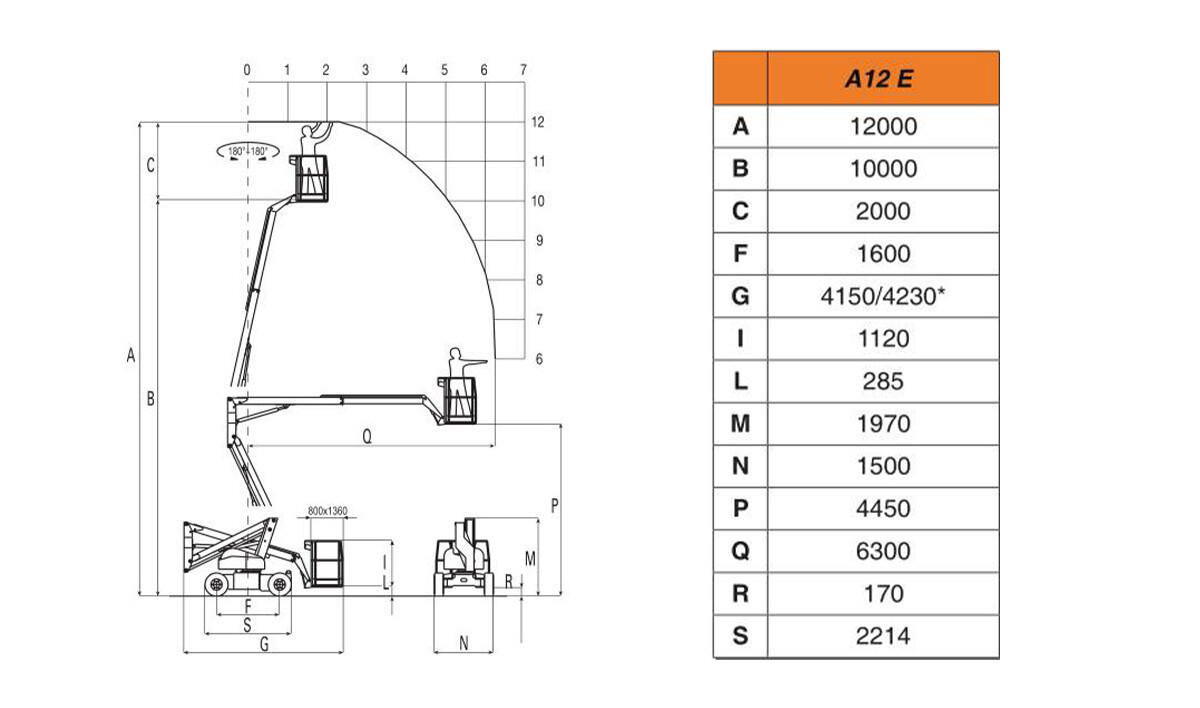

Override   height4.45m
Carrying   capacity200kg
Length4.15m
Width1.5m
Height -   stowed1.97m
Transport   height1.97m
Wheelbase1.6m
Ground   clearance17cm
Platform   dimensions1.36 x 0.8m
Tail swing0cm
Proportional   drive speed0.6 - 4km/h
Turning radius   - outside2.95m
Turntable   rotation angle360°
Power source48V - 325Ah
Gradeability25%
Non-marking   tires584 x 324mm
Hydraulic   system capacity40L
Weight3900kg
