Product introduction

Online consultation

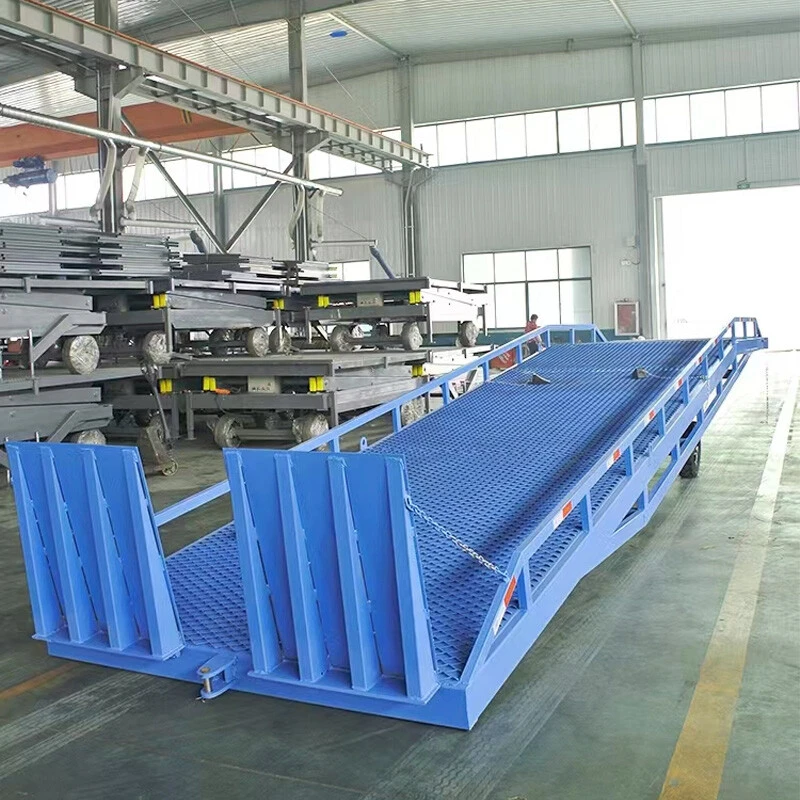

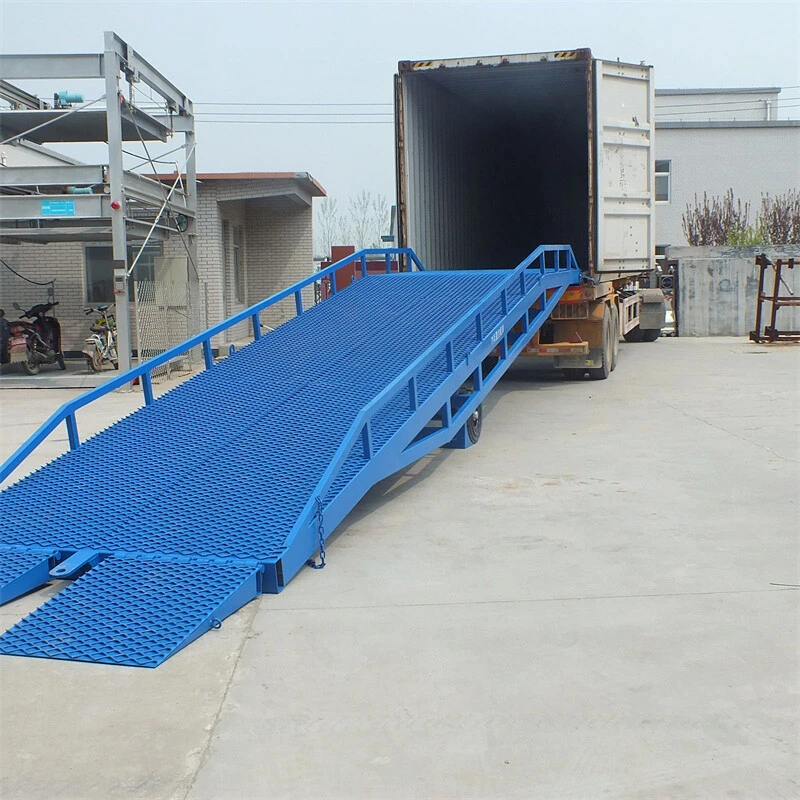

The mobile hydraulic loading ramp is a cargo loading and unloading auxiliary equipment used in conjunction with a forklift. The height can be adjusted according to the height of the car compartment. The forklift can directly drive into the compartment through this equipment to load and unload the cargo in batches. Only one person is required to work to achieve rapid loading and unloading of the cargo. It enables enterprises to reduce a lot of labor, improve work efficiency, and obtain greater economic benefits.

1. The table top adopts a special diamond grid plate with reliable strength, which can ensure long-term use without deformation. (Its diamond mesh structure fully guarantees excellent anti-slip performance, so that the forklift has better climbing and maneuverability. Even in rainy and snowy weather, it can still ensure normal use.)

2. The adjustable length of the cable chain can easily hook the truck, so that the loading ramp and the truck are always closely fitted.

3. The hand-cranked hydraulic pump is used as the power, and the height adjustment of the loading ramp can be easily achieved without an external power supply.

4. The configured brake pad can effectively prevent the loading ramp from shifting during truck loading and unloading.

Mobile hydraulic ramp
Art.No	Description type	Capacity	leg	Tongue board size	Platform size	Ramp size	Tail board size	Inside /outside width	Minimum height	Maximum height
Art.No	Description type	Kg	Match/Not Match	（MM）	（MM）	（MM）	（MM）	（MM）	（MM）	（MM）
WEL 0607001	DCQY6-0.8	6000	Not Match	300	2200	7000	1000	2000 2080	1000	1800
WEL 0607002	DCQY6-0.6	6000	Match	300	2200	7000	1000	2000 2080	1200	1700
WEL 0607003	DCQY8-0.8	8000	Not Match	300	2200	7000	1000	2000 2100	1000	1800
WEL 0607004	DCQY8-0.6	8000	Match	300	2200	7000	1000	2000 2100	1200	1700
WEL 0607005	DCQY10-0.8	10000	Not Match	300	2400	7500	1000	2000 2100	1000	1800
WEL 0607006	DCQY10-0.6	10000	Match	300	2400	7500	1000	2000 2100	1200	1700
WEL 0607007	DCQY15-0.8	15000	Not Match	300	3000	8000	1000	2000 2120	1000	1800
WEL 0607008	DCQY15-0.6	15000	Match	300	3000	8000	1000	2000 2120	1200	1700
WEL 0607009	DCQY20-0.8	20000	Not Match	300	3000	8000	1000	2000 2160	1000	1800
WEL 0607010	DCQY20-0.6	20000	Match	300	3000	8000	1000	2000 2160	1200	1700

Material list & certificate

Company introduction

Nasheng Import & Export (Shandong) Co., Ltd. is mainly engaged in the research, development, production and sales of off-road forklifts, reach forklifts, electric forklifts, etc., and has developed outstanding new products in various industries. From production and manufacturing technology, product quality, after-sales service and other aspects, Nasheng Import & Export is outstanding in the domestic engineering machinery industry.
"Nasheng" forklifts are widely used throughout the country and in countries and regions such as Europe and Southeast Asia, providing ideal and reliable engineering machinery for engineering tasks of companies of different sizes. Whether in cities or villages, our products meet the different needs of customers and have won unanimous praise.
